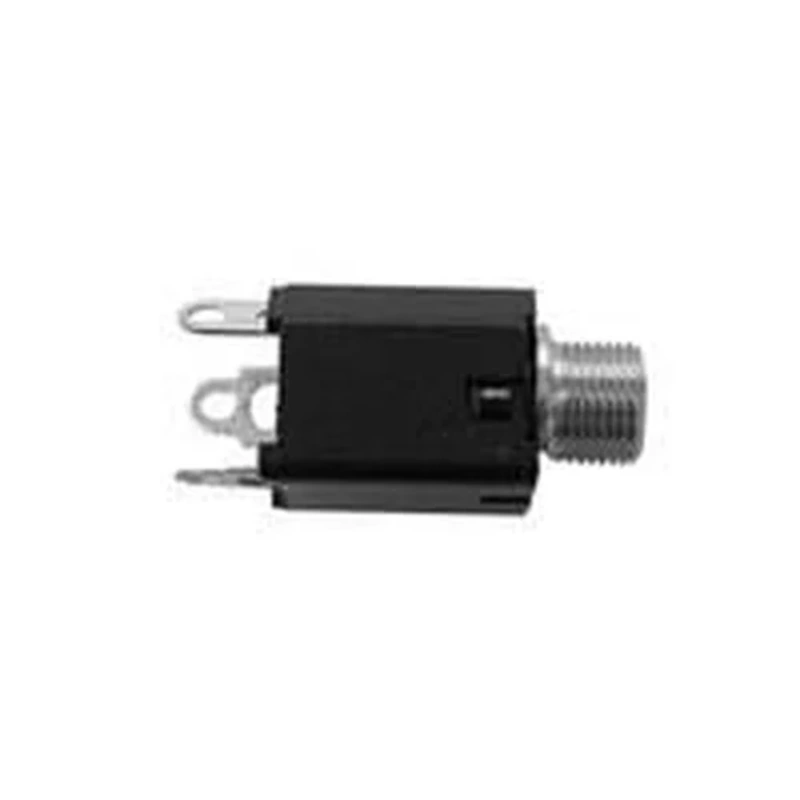

Series: Hi-D NL11
Connector Type: Phone Jack
Gender: Female
Signal Lines: Stereo
Plug/Mating Plug Diameter: 6.35mm (0.250″, 1/4″) – Headphone
Number of Positions/Contacts: 3 Conductors, 3 Contacts
Internal Switch(s): Does Not Contain Switch
Mounting Type: Panel Mount; Through Hole
Termination: Solder Eyelet(s)
Features: Mounting Hardware, Thread Lock
Contact Material: Copper Alloy
Contact Material Plating: Tin
Housing Material: Plastic
Housing Color: Black
Operating Temperature: -20C to 65C
Voltage-Rated: 48VDC
Current Rating: 250mA
