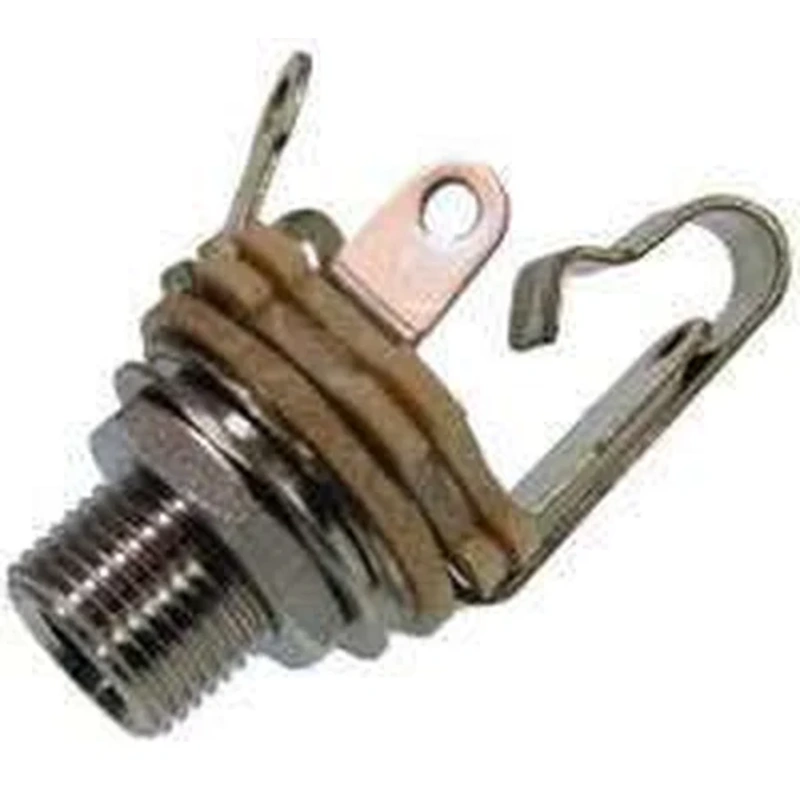

Yorkville SWC-L12B Switchcraft 1/4 Inch Female Long Bushing TRS Panel Jack
Connector Type: Phone JackGender: FemaleSignal Lines: TRS (Stereo)Plug/Mating Plug Diameter: 6.35mm (0.250", 1/4") - HeadphoneNumber of Positions/Contacts: 3 Conductors, 3 ContactsInternal Switch(s): Does Not Contain SwitchMounting Type: Panel Mount; Throu
Connector Type: Phone Jack
Gender: Female
Signal Lines: TRS (Stereo)
Plug/Mating Plug Diameter: 6.35mm (0.250″, 1/4″) – Headphone
Number of Positions/Contacts: 3 Conductors, 3 Contacts
Internal Switch(s): Does Not Contain Switch
Mounting Type: Panel Mount; Through Hole
Termination: Solder Eyelet(s)
Shielding: Unshielded
Features: Mounting Hardware, Thread Lock
Color Contact: Silver
Contact Material: Copper Alloy
Contact Plating: Nickel
Housing Material: Copper Alloy
Housing Color: Silver
Operating Temperature: -20C ~ 65C
Voltage – Rated: 25VDC
Current Rating: 1A
