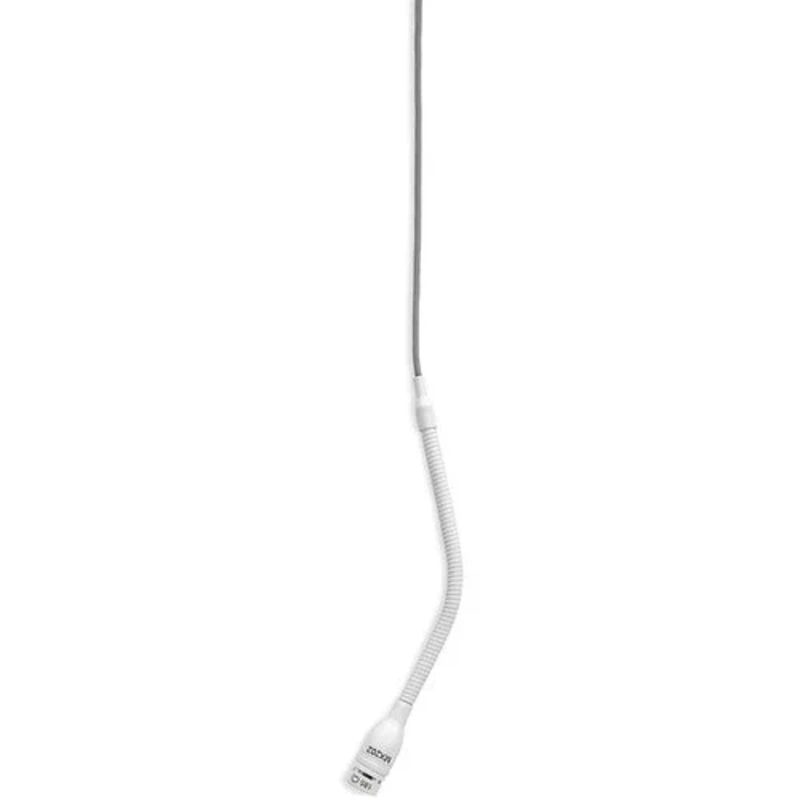

Shure MX202WP-AN Overhead Microphone No Cartridge – White
Shure MX202OverviewThe whiteMX202WP-AN Overhead Microphone, No CartridgefromShureis a small, unobtrusive microphone with a plate-mounted preamp that is attached to a flexible, 4" gooseneck with a 30' cable. It can be used when paired with interchangeable o
Shure MX202Overview
The whiteMX202WP-AN Overhead Microphone, No CartridgefromShureis a small, unobtrusive microphone with a plate-mounted preamp that is attached to a flexible, 4″ gooseneck with a 30′ cable. It can be used when paired with interchangeable omnidirectional, cardioid, or supercardioid condenser microphone cartridges (sold separately) to capture high-quality audio in various environments and offers easy installation in ceilings for sound reinforcement performance applications.
The microphone is most stable when the gooseneck is bent into a “lazy S” shape. Use the supplied hanging clip and/or heavy thread or monofilament fishing line to suspend the microphone at a specific location. For choir installations, hang about 2 to 3′ in front of the first row and 2 to 3′ over the heads of singers in the last row.
Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrumInterchangeable cartridges that provide an optimal polar pattern choice for each applicationBalanced, transformerless output for increased immunity to noise over long cable runsWhite finish that blends unobtrusively with most surroundingsWhen combined with the high-sensitivity cartridge’s wide frequency response, these microphones provide accurate sound reproduction with minimum RF interference or electromagnetic hum
Shure MX202Specs
Microphone
| Form Factor | Hanging |
| Sound Field | Mono |
| Capsule | None |
| Orientation | End Address |
| Circuitry | Solid-State |
| Pad | None |
| High-Pass Filter | None |
| Tone Adjustment | None |
| Indicators | None |
| On-Board Controls | None |
| Windscreen | Foam (Available Separately) |
Performance
| Frequency Range | 50 Hz to 17 kHz |
| Maximum SPL | Cardioid:124.2 dB SPL Supercardioid:122.7 dB SPL Omnidirectional:116.7 dB SPL |
| Impedance | 150 Ohms |
| Sensitivity | Cardioid:-35.5 dBV/Pa at 1 kHz (Open Circuit Voltage) Supercardioid:-33.5 dBV/Pa at 1 kHz (Open Circuit Voltage) Omnidirectional:-27.5 dBV/Pa at 1 kHz (Open Circuit Voltage) |
| Dynamic Range | 96 dB (1-Kilohm Load) |
| Signal-to-Noise Ratio | Cardioid:66 dB (at 1 Pa/94 dB SPL) Supercardioid:68 dB (at 1 Pa/94 dB SPL) Omnidirectional:73.5 dB (at 1 Pa/94 dB SPL) |
| Equivalent Noise Level | Cardioid:28 dB SPL A-Weighted Supercardioid:27 dB SPL A-Weighted Omnidirectional:20.5 dB SPL A-Weighted |
Connectivity
| Output Connectors (Analog) | 1 xScrew Terminal |
| Cable Length | 30′ / 9m |
Power
| Operating Voltage | 11 to 52 V (Phantom Power) |
| Operating Current Consumption | 2.0 mA (Phantom Power) |
Physical
| Color | White |
| Mounting | Hanging, Surface-Mount |
| Operating Temperature | 0 to 135F / -17.78 to 57.22C |
| Operating Humidity | 0 to 95% |
Packaging Info
| Package Weight | 0.965 lb |
| Box Dimensions (LxWxH) | 10 x 4.7 x 3.2″ |
