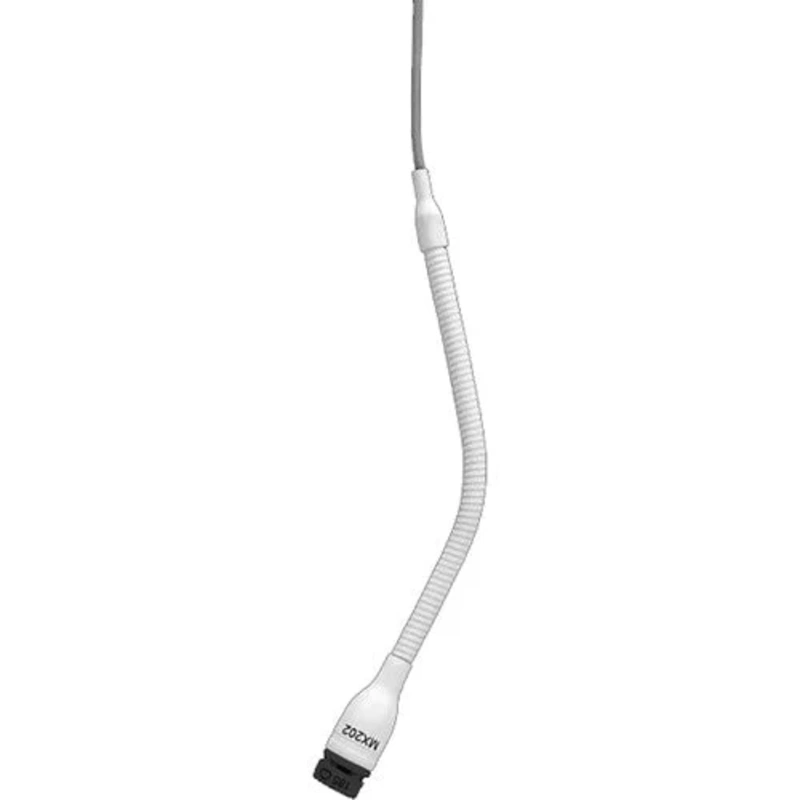

Shure MX202W-A/N Microflex Overhead Microphone with No Mic Cartridge with Stand Mount Adapter and XLR Connector – White
Shure MX202OverviewThe whiteMX202W-A/N Microflex Overhead Microphone with No Mic Cartridge with Stand Mount Adapter and XLR ConnectorfromShureis designed to capture high-quality audio in a compact adjustable package for applications such as miking a choir,
Shure MX202Overview
The whiteMX202W-A/N Microflex Overhead Microphone with No Mic Cartridge with Stand Mount Adapter and XLR ConnectorfromShureis designed to capture high-quality audio in a compact adjustable package for applications such as miking a choir, distance learning in a classroom, and for live stage and theater environments with performance groups.
TheMX202W-A/Noverhead uses a modular design with interchangeable mic cartridges; this model is sold without a cartridge so you can add one of your choice, and is attached to a flexible 4″ gooseneck and a 30′ cable. All of the mic capsules offer a wide dynamic range and a 50 Hz to 17 kHz frequency response.
Other features include a balanced, transformerless output for increased immunity to noise and an updated RF Immune TA4F connector (connection to the preamp) now made of metal instead of plastic, which provides additional shielding.
Updated RF Immune TA4F connector features a metallic cover compared to the standard TA4F plastic cover. The metal cover provides additional RF shielding.Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum.Balanced, transformerless output for increased immunity to noise over long cable runs.Supplied stand-mount adapter for portable applications (in-line preamplifier versions only).White or black finish that blends unobtrusively with most surroundings.Preamp options available offer easy installation in ceilings or microphone stands.When combined with the high-sensitivity cartridge’s wide frequency response, these microphones provide accurate sound reproduction with minimum RF interference or electromagnetic hum.
Shure MX202Specs
Microphone
| Form Factor | Gooseneck / Stand/Boom Mount |
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Capsule | 1 xCondenser |
| Orientation | End Address |
| Circuitry | Solid-State |
| Pad | None |
| High-Pass Filter | None |
| Tone Adjustment | None |
| Indicators | None |
| On-Board Controls | None |
| Windscreen | Foam (Included) |
Performance
| Frequency Range | 50 Hz to 17 kHz |
| Impedance | 180 Ohms |
| Dynamic Range | 96.2 dB A-Weighted |
| CMRR | 45 dB |
Connectivity
| Output Connectors (Analog) | 1 xXLR 3-Pin Male (on Preamp) |
| Cable Length | 30′ / 9.14m |
Power
| Operating Voltage | 11 to 52 V |
| Operating Current Consumption | 2.0 mA |
Physical
| Color | White |
| Mounting | Mic Clip/Stand Adapter (with Included Hardware) |
| Operating Temperature | 0 to 135F / -17.8 to 57.2C |
| Operating Humidity | 0 to 95% |
| Storage Temperature | -20 to 165F / -28 to 73C |
| Dimensions | : 0.46 x L: 5.69″ / : 11.68 x L: 144.53mm |
| Weight | 17.8oz / 504.63g |
