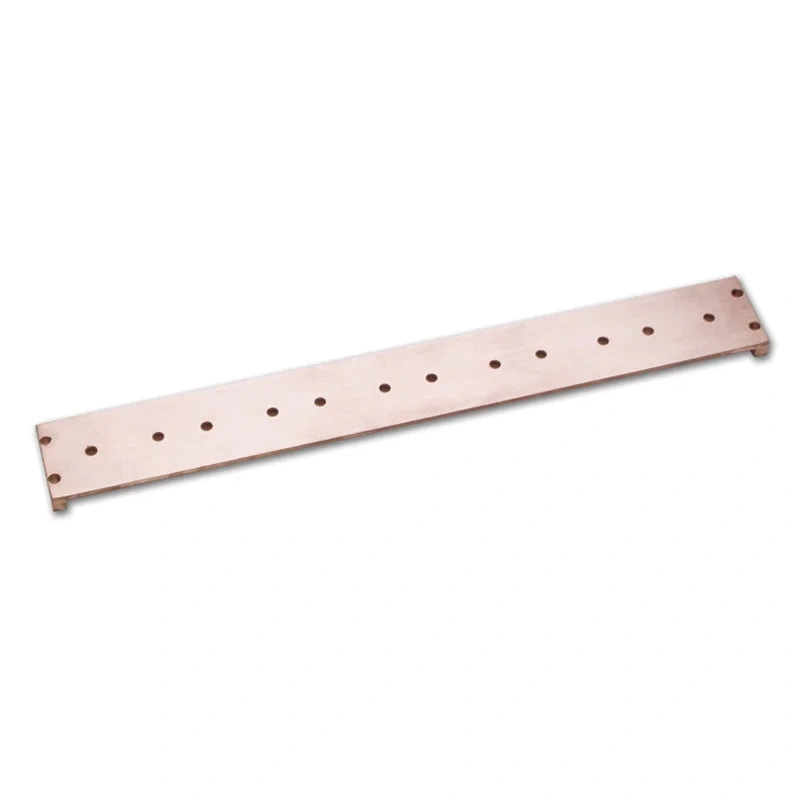

RDL GB6 Grounding Bar for TS-1D Modules
The TS-1D is intended to protect audio input and output circuits from the effects of transients induced on the audio lines.FeaturesImmunity from Electrostatic DischargeImmunity from Induced Transient VoltageImmunity from RF InterferenceImmunity from Electr
Category: Integration
The TS-1D is intended to protect audio input and output circuits from the effects of transients induced on the audio lines.
Features
- Immunity from Electrostatic Discharge
- Immunity from Induced Transient Voltage
- Immunity from RF Interference
- Immunity from Electromagnetic Pulse
- CE Compliance
Specifications
| AUDIO | |
| Frequency Response: | 10 Hz to 50 kHz ( 0.25 dB) |
| Insertion Loss: | <0.3 dB (into balanced bridging input), <1.0 dB (into 150 or 600 balanced< input), < 6 dB (600 balanced source into 600 load) |
| ELECTRICAL | |
| Number of Circuits: | 4, independent (for connection as 4 unbalanced or 2 balanced audio lines) |
| Equivalent Series Resistance, Input to Output: | 20 |
| Equivalent Circuit: | 300 kHz LP filter, 6 dB/octave, integral shunt high-voltage switch |
| Maximum Working Signal: | 30 Vp, 60 V p-p |
| HV Switch Clamp: | 24 V actuation; 48 V maximum |
| Transient Energy: | 0.1 joule |
| PHYSICAL | |
| Case Material: | Electromagnetically inert plastic composition |
| Size: | 1.75 in. W x 2.5 in. L x 0.9 in. H (4.45 cm x 6.35 cm x 2.29 cm) (including terminal strip) |
| Ground Bus (integral): | 110 alloy copper, 0.25″ W x 1.6″ L (.64 cm x 4.1 cm) with 2 mounting holes, #6 (.37 cm) clearance, mounting hardware included |
| Input/Output Termination: | #6 (.35 cm) captive screw terminals |
| Package Type: | Cardboard Box |
| WEEE weight: | 0.185 lbs. |
| Shipping Weight: | 0.245 lbs. |
| Tariff code: | 8543.70.9860 |
| Package Dimensions: | 2 x 2 x 4 in. |
