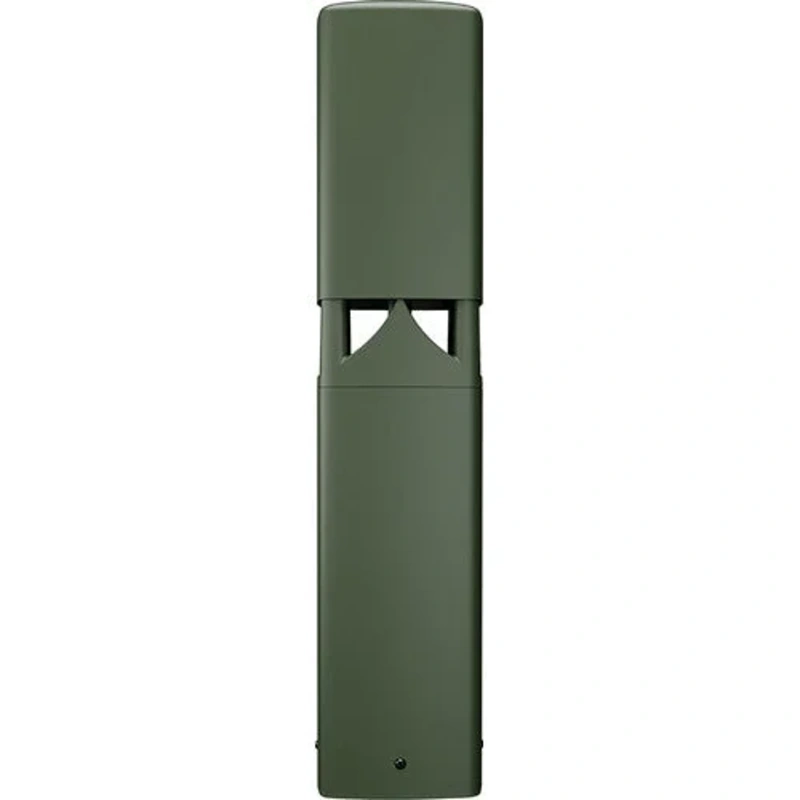

Q-SYS AD-DWL.360 2-WayOutdoor Landscape Speaker (Green) – 5.25″
Add high-quality audio to your garden or walkway with theQSC AD-DWL.360, a premium outdoor landscape speaker system that features a rugged, weatherized enclosure that delivers a superior, customized sound experience. The elevated bollard design allows the
Add high-quality audio to your garden or walkway with theQSC AD-DWL.360, a premium outdoor landscape speaker system that features a rugged, weatherized enclosure that delivers a superior, customized sound experience. The elevated bollard design allows the sound to travel above obstructions. The 360 coverage angle provides customization for individual environmental requirements.
Outfitted with a 5.25″ weather-treated woofer and two 1″ aluminum dome tweeters, which combine to offer a frequency range of 55 Hz to 25 kHz (-10 dB), the speaker is capable of handling 60W RMS and producing a maximum SPL of 110 dB. The AD-DWL.360 includes a concrete mounting collar, an installation template, and mounting hardware. For in-ground installation, the AD-DWL.BASE accessory is sold separately.
Features
- 5.25″ Woofer
- Two 1″ Silk Dome Tweeters
- 60W RMS Power Handling
- 360 Coverage
- 110 dB Peak Maximum SPL
- 55 Hz to 25 kHz Frequency Range
- Low-Saturation Multi-Tap Transformer
- Supports 70V, 100V, or 16-Ohm Operation
- Wire Pig-Tail Input
- Includes Mounting Hardware
Specifications
| Active/Passive | Passive |
| Number of Included Speakers | 1 |
| Speaker Configuration | 2-Way |
| Power Handling | 60 W RMS |
| Constant Voltage / Transformer Taps | 70 V: 60 / 30 / 15 / 7.5 W 100 V: 60 / 30 / 15 W or 16 Ohms Bypass |
| Impedance | 8 Ohms (Transformer Bypassed) |
| Enclosure Type | Sealed |
| Shielded | No |
Drivers
| HF Driver | 2x 1″ / 2.5cm Horn-Loaded Aluminum Dome Tweeter |
| LF Driver | 1x 5.25″ / 13.34cm Paper Woofer |
Performance
| Frequency Range | 55 Hz to 25 kHz -10 dB |
| Maximum SPL | 104 dB (Continuous) 110 dB (Peak) |
| Sensitivity | 84 dB SPL |
| Coverage Angle | 360 (Conical) |
Connectivity
| Inputs/Outputs | 1x Wire Lead 2-Pole Speaker Input (Removable) |
Environmental
| Environmental Protection | No |
| Operating Temperature | 23 to 122F / -5 to 50C |
Physical
| Color | Green |
| Mounting | 1x Bracket Point (Bottom) |
| Construction Material | Polycarbonate, Polypropylene |
| Dimensions | 30.16 x 6.46 x 6.46″ / 76.61 x 16.41 x 16.41cm |
| Weight | 10.4lb / 4.7kg |
Packaging Info
| Package Weight | 24.4 lb |
| Box Dimensions (LxWxH) | 38 x 11 x 10.5″ |
