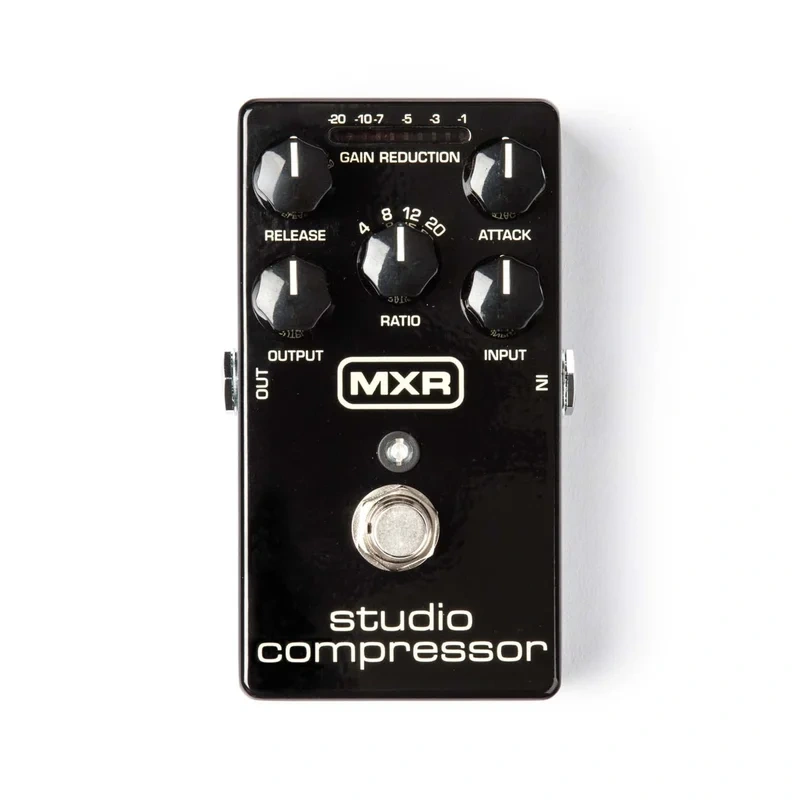

The MXR design team took a classic recording studio fixture and stuffed it into a pedalboard-friendly box. The Studio Compressor features Attack, Release, Ratio, Input, and Output controls so you can fine-tune your compression level-from subtle to squashing-right on stage with visual feedback from a bright LED gain-reduction status meter. Constant Headroom Technology provides tons of headroom for clear, transparent performance that’s as dynamic as you need it to be. It’s all packed into a durable, lightweight aluminum-housing that’s the size of a Phase 90.

Specifications:

• Input Impedance: 1 M
• Output Impedance: 600
• Max Input Level: +14 dBV
• Max Output Level: +8.5 dBV
• Noise Floor: -90 dBV
• THD: < 0.5%
• Gain: 31 dB
• Compression Ratio: 4:1, 8:1, 12:1, 20:1
• Attack Time: 20 s to 800 s
• Release Time: 50 ms to 1.1 s
• Bypass: True Hardwire
• Current Draw: 14 mA (LEDs Off), 19mA (LEDs On)
• Power Supply: 9 Volts DC
