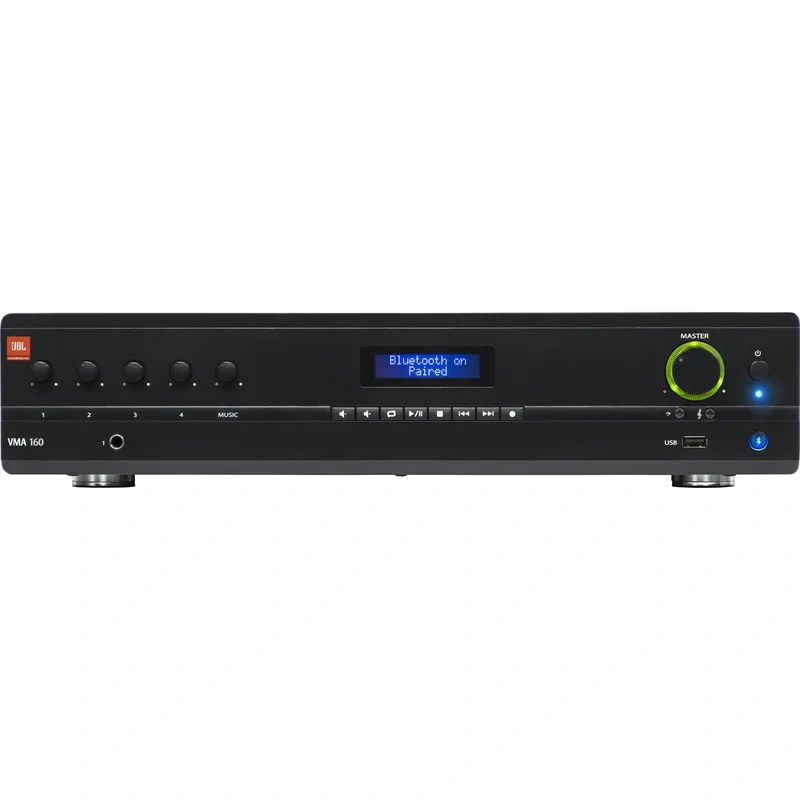

JBL VMA160 Bluetooth-Enabled Mixer Amplifier (5-In/1-Out) – 60W
TheJBL VMA160is a Commercial Series Bluetooth-enabled mixer/amplifier designed to provide flexible multi-source mixing and amplification for installation in restaurants, educational institutions, fitness centers, and retail stores. It features a 5-in/1-out
TheJBL VMA160is a Commercial Series Bluetooth-enabled mixer/amplifier designed to provide flexible multi-source mixing and amplification for installation in restaurants, educational institutions, fitness centers, and retail stores. It features a 5-in/1-out mixer and 60W of output power. It can be installed in a standard 19 equipment rack with the supplied rackmount kit or set on a surface such as a desk or ledge.
Stream music wirelessly via Bluetooth or connect a USB drive to the front-panel USB Type-A port. Route other sources via Euroblock, RCA, and 1/4″ input jacks. The integrated mixer offers level controls as well as bass and treble for each channel. Routing to the Euroblock outputs is configurable. The VMA160 supports voice-activated ducking and priority muting. The front-panel controls and display make operation easy, and remote volume control is possible via a JBL CSR-V module and a standard Ethernet cable (both available separately).
Features
- 5-Input Mixer
- Supports USB Drives and Bluetooth
- 60W, 1-Output Amplifier
- Euroblock, RCA, and 1/4″ Inputs
- Euroblock Outputs
- Per-Channel Bass and Treble Controls
- Voice-Activated Ducking
- Front-Panel Display and Controls
- Configurable Output Routing
- Includes Rackmount Kit
Specifications
| Form Factor/Type | Tabletop |
| Number of Channels | 5 Input / 1 Output |
| Amplifier Power Rating | 4 Ohms / 8 Ohms: 60 W per Channel (1 kHz, 0.5% THD) |
| Load Impedance / Voltage | 4 Ohms (Minimum) 70 V (80 Ohms Minimum) 100 V (160 Ohms Minimum) |
Performance
| Frequency Response | 20 Hz to 20 kHz 2 dB (Low-Z) 80 Hz to 15 kHz 3 dB (70/100 V) |
| Input Sensitivity | Mic: 5.5 mVrms Line: 1.3 Vrms Stereo RCA: 130 mVrms |
| I/O Impedance | Mic Input: 400 Ohms Line Input: 20 Kilohms (Balanced) RCA Input: 50 Kilohms |
| Insertion Loss | 1 dB Maximum |
| SNR | > 76 dB (at Rated Power, A-Weighted) |
| THD | < 0.5% (20 Hz to 20 kHz) |
| Crosstalk | -70 dB (at Rated Power, Mid Gain, 1 kHz) |
Signal Processing
| EQ | 2-Band per Channel: Bass:14 dB at 50 Hz Treble:14 dB at 10 kHz |
Connectivity
| Phantom Power | 27 VDC |
Power
| AC Input Power | 100 VAC, 50 / 60 Hz 120 VAC, 50 / 60 Hz 220 VAC, 50 / 60 Hz 220 to 240 VAC, 50 / 60 Hz |
Physical
| Operating Temperature | 32 to 95F / 0 to 35C |
| Storage Temperature | -4 to 185F / -20 to 85C |
| Operating Humidity | 0 to 95% () |
| Dimensions | 17.0 x 3.5 x 16.3″ / 432.0 x 88.0 x 415.0mm |
| Weight | 19.4lb / 8.8kg |
Packaging Info
| Package Weight | 24 lb |
| Box Dimensions (LxWxH) | 21 x 20.5 x 6.5″ |
