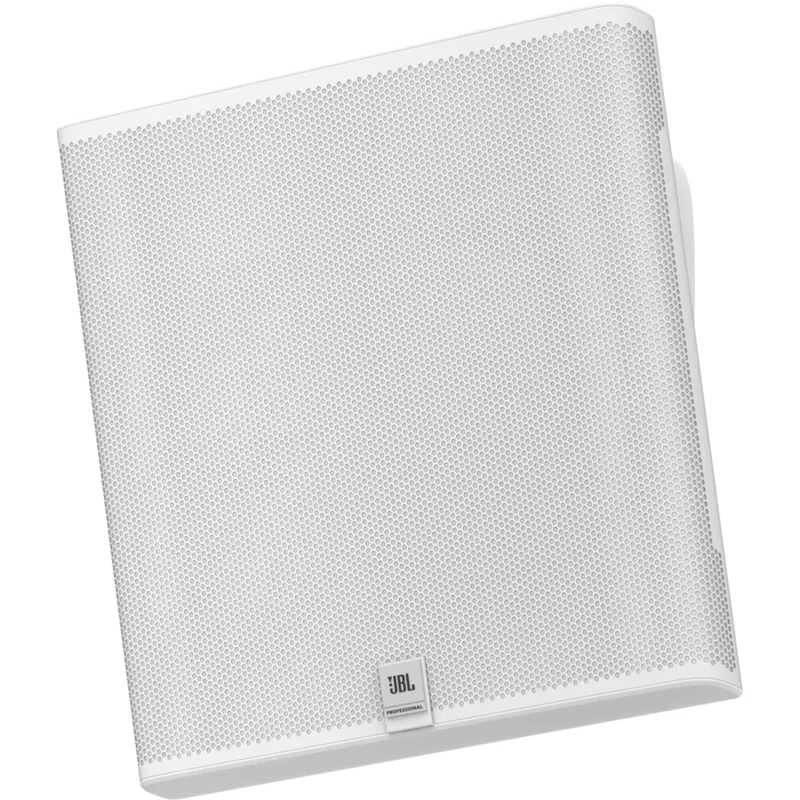

JBL SLP14/T-WH On-Wall Two-Way Loudspeaker (White, Pair) – 4″
Offering broad, consistent coverage, powerful sound, and a sleek, low-profile enclosure, the whiteSLP14/TfromJBLlays a solid foundation for a wide range of installed audio applications, such as restaurants, retail spaces, hotels, resorts, and even home the
Offering broad, consistent coverage, powerful sound, and a sleek, low-profile enclosure, the whiteSLP14/TfromJBLlays a solid foundation for a wide range of installed audio applications, such as restaurants, retail spaces, hotels, resorts, and even home theater systems. With up to a peak 200W of power handling and a two-way driver system consisting of one 0.79″ tweeter and one 4.5″ woofer, the SLP14/T delivers potent, high-quality sound, and thanks to an award-winning design and a 15 down-tilted angle, it remains flush to the wall.
The 25W multitap transformer can support 70 and 100V or direct 8-ohm operation in installed systems, and connection to amplifiers is easy with a convenient 4-pin Euroblock terminal. This speaker is ADA compliant, at less than 4″ deep, and is capable of handling outdoor installations too, with an IP44 water splash rating. The SPL14/T includes a slide-on wall bracket for easy installation, a 4-pin Euroblock plug, and a protective rain cover for the terminal during outdoor use.
Features
- For Restaurants, Retail, and Home Audio
- Sleek, Flush-to-Wall Audio Solution
- 0.79″ Dome Tweeter, 4.5″ Cone Woofer
- 100W Continuous Program, 200W Peak
- 15 Down-Tilted Coverage
- Multitap Transformer: 70/100V or 8-Ohm
- 4-Pin Euroblock Audio Connection
- ADA-Compliant Design, Under 4″ Deep
- IP44 Water Ingress Protection
- Includes Wall Bracket and Rain Cover
Specifications
| Active/Passive | Passive |
| Number of Included Speakers | 1 |
| Speaker Configuration | 2-Way |
| Power Handling | For 2 Hours: 40 W 100 W Program 200 W Peak For 100 Hours: 30 W 120 W Peak |
| Constant Voltage / Transformer Taps | 70 V: 25 / 12.5 / 6.3 / 3.2 W or 8 Ohms Bypass 100 V: 25 / 12.5 / 6.3 W or 8 Ohms Bypass |
| Impedance | 7.1 to 8 Ohms |
| Transformer Wattage | 25 W |
| Enclosure Type | Sealed |
Drivers
| HF Driver | 1x 0.79″ / 2.01cm Titanium Dome Tweeter |
| LF Driver | 1x 4.5″ / 11.4cm Polypropylene Woofer |
| LF Voice Coil | 1″ / 2.5cm |
| Magnet | Neodymium |
Performance
| Frequency Range | 70 Hz to 20 kHz -10 dB |
| Frequency Response | 80 Hz to 18 kHz 3 dB |
| Sensitivity | 85 dB (Half-Space) |
| Coverage Angle | 140 H x 120 V |
| Directivity | 6.9 (Directivity/Q Factor) 8.4 dB (Directivity Index) |
| Recommended High-Pass Filter | 70 Hz, 24 dB/Octave |
| Maximum Input Voltage | 18 V RMS 36 V Peak |
| Transformer Insertion Loss | <1 dB |
Connectivity
| Inputs/Outputs | 1x Block 4-Pin Speaker Input (Locking, Removable) |
| Maximum Wire Gauge | 24 AWG |
Environmental
| Environmental Protection | Dust/Water-Resistant (IP44) |
Physical
| Color | White |
| Mounting | 1x Bracket Point (Rear) |
| Rotation Range | No |
| Construction Material | ABS, Polycarbonate |
| Dimensions | 11.3 x 10.4 x 3.9″ / 28.7 x 26.4 x 9.9cm |
| Weight | 6.2lb / 2.8kg |
Packaging Info
| Package Weight | 13.765 lb |
| Box Dimensions (LxWxH) | 14.9 x 13.1 x 9.5″ |
