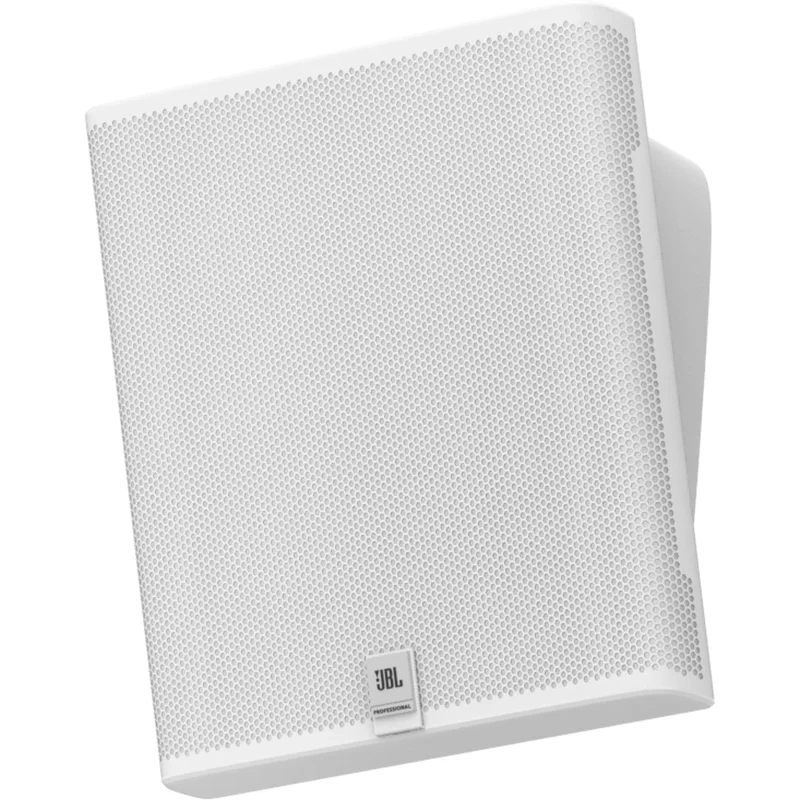

JBL SLP12/T-WH On-Wall Full-Range Loudspeaker (Pair, White) – 3″
Offering broad, consistent coverage, powerful sound, and a sleek, low-profile enclosure, the whiteSLP12/TfromJBLlays a solid foundation for a wide range of installed audio applications, such as restaurants, retail spaces, hotels, resorts, and home theater
Offering broad, consistent coverage, powerful sound, and a sleek, low-profile enclosure, the whiteSLP12/TfromJBLlays a solid foundation for a wide range of installed audio applications, such as restaurants, retail spaces, hotels, resorts, and home theater systems. With up to a peak 160W of power handling and a 3″ full-range driver, the SLP12/T delivers high-quality sound, and thanks to an award-winning design and a 15 down-tilted angle, it remains flush to the wall.
The 15W multi-tap transformer can support 70 and 100V or direct 8-ohm operation in installed systems, and connection to amplifiers is easy with a convenient 4-pin Euroblock terminal. This speaker is ADA compliant, at less than 4″ deep, and is capable of handling outdoor installations too, with an IP44 water splash rating. The SPL12/T includes a slide-on wall bracket for easy installation, a 4-pin Euroblock plug, and a protective rain cover for the terminal during outdoor use.
Features
- For Restaurants, Retail, and Home Audio
- Sleek, Flush-to-Wall Audio Solution
- 3″ Full-Range Driver
- 80W Continuous Program, 160W Peak
- 15 Down-Tilted Coverage
- Multitap Transformer: 70/100V or 8-Ohm
- 4-Pin Euroblock Audio Connection
- ADA-Compliant Design, Under 4″ Deep
- IP44 Water Ingress Protection
- Includes Wall Bracket and Rain Cover
Specifications
| Active/Passive | Passive |
| Number of Included Speakers | 1 |
| Speaker Configuration | Full-Range |
| Power Handling | 80 W Program For 2 Hours: 40 W 160 W Peak For 100 Hours: 20 W 80 W Peak |
| Constant Voltage / Transformer Taps | 70 V: 15 / 7.5 / 3.8 / 1.9 W or 8 Ohms Bypass 100 V: 15 / 7.5 / 3.8 W or 8 Ohms Bypass |
| Impedance | 7.5 to 8 Ohms |
| Transformer Wattage | 15 W |
| Enclosure Type | Sealed |
Drivers
| Full-Range Driver | 1x 3″ / 7.6cm Polypropylene-Coated Cone |
| Full-Range Voice Coil | 0.8″ / 2cm |
Performance
| Frequency Range | 74 Hz to 20 kHz -10 dB |
| Frequency Response | 91 Hz to 18 kHz 3 dB |
| Sensitivity | 84 dB (Half-Space) |
| Coverage Angle | 120 H x 120 V |
| Directivity | 7.5 (Directivity/Q Factor) 8.8 dB (Directivity Index) |
| Recommended High-Pass Filter | 70 Hz, 24 dB/Octave |
| Maximum Input Voltage | 15 V RMS 30 V Peak |
| Transformer Insertion Loss | <1 dB |
Connectivity
| Inputs/Outputs | 1x Block 4-Pin Speaker Input (Locking, Removable) |
| Maximum Wire Gauge | 24 AWG |
Environmental
| Environmental Protection | Dust/Water-Resistant (IP44) |
Physical
| Color | White |
| Mounting | 1x Bracket Point (Rear) |
| Rotation Range | No |
| Construction Material | ABS, Polycarbonate |
| Dimensions | 9.8 x 9.1 x 3.9″ / 24.9 x 23.1 x 9.9cm |
| Weight | 4.2lb / 1.9kg |
