JBL CSA2120Z Audio Amplifier – 2x120W

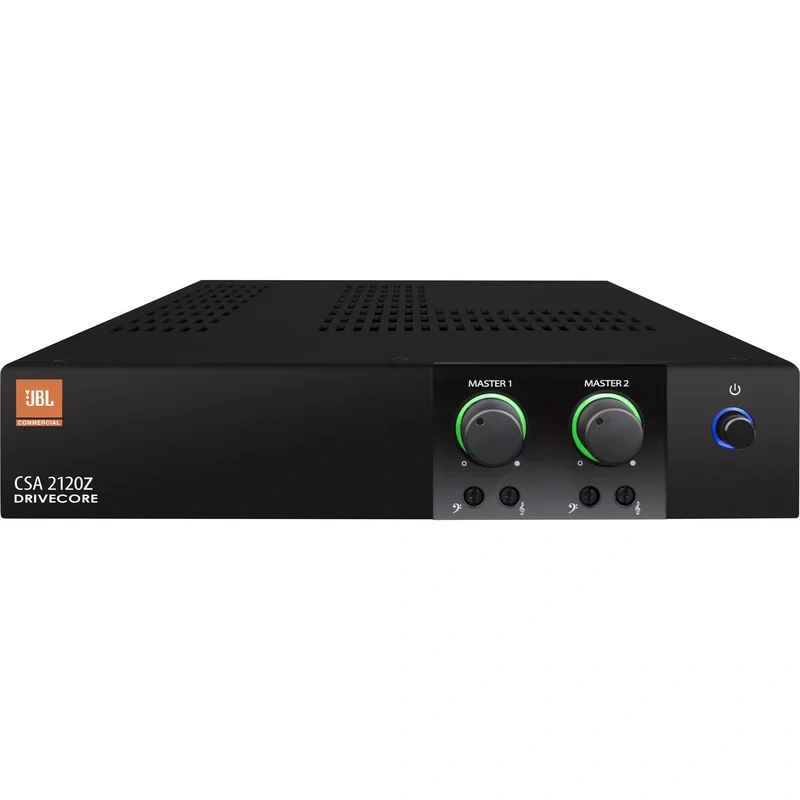

TheJBL CSA 2120Z Audio Amplifier (2x 120W)provides a compact and powerful amplification solution for installed applications. The unit utilizes a universal switch-mode power supply and Crown's DriveCore technology to deliver reliable and efficient sound amp
TheJBL CSA 2120Z Audio Amplifier (2x 120W)provides a compact and powerful amplification solution for installed applications. The unit utilizes a universal switch-mode power supply and Crown’s DriveCore technology to deliver reliable and efficient sound amplification.
The unit supports both 70 and 100V installations out of the box. It includes 2 x RJ45 connectors for use with the company’s CSR-V in-wall volume controls. Inputs are provided by mono sum RCA connectors and Euroblock. Outputs are provided by Euroblock connectors. Illuminated knobs provide visual feedback, and the universal power supply allows the amplifier to accept AC voltages from 100 to 240 VAC, 50/60 Hz. The amp also fulfills HARMAN’s GreenEdge environmental initiative.
Features
- 120W into 4 or 8 Ohms
- Switch-Mode Universal Power Supply
- DriveCore-Based Amplification
- Supports 70V and 100V Installations
- RJ45 Connectors for JBL CSR-V Controls
- GreenEdge Environmental Initiative
- Fanless, Space-Serving 1 RU Design
- Sleep Mode Disable Function
- Illuminated Knobs
Specifications
| Amplifier Power Rating | 4 Ohms / 8 Ohms: 120 W (1 kHz, 0.5% THD) |
| Load Impedance / Voltage | 4 Ohms (Minimum) 70 / 100 V |
Performance
| Frequency Response | 20 Hz to 20 kHz 0.5 dB (8 Ohms) |
| Input Sensitivity | 1.4 Vrms |
| Input Impedance | Block: 20 Kilohms (Balanced) RCA: 50 Kilohms |
| SNR | > 100 dB |
| THD | < 0.5% |
| Crosstalk | > 70 dB |
Signal Processing
| DSP | Yes |
| Crossover | Yes |
| EQ | 2-Band |
| Compressor | Yes |
| Limiting | Yes |
Connectivity
| Analog Audio I/O | 1x 2RCA TS Summed-Mono Input 2x Block 3-Pin Input 2x Block 5-Pin 70/100 V Output |
| Digital I/O | 2x RJ45 (Control) |
| Phantom Power | Yes |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| AC Power Connector | 1x IEC 15 A / NEMA 5-15 |
Physical
| Certifications | ENERGY STAR |
| Operating Temperature | 32 to 95F / 0 to 35C |
| Storage Temperature | -4 to 185F / -20 to 85C |
| Dimensions | 8.6 x 11.9 x 1.7″ / 218.5 x 303.4 x 43.3mm |
| Weight | 8.8lb / 4kg |
Packaging Info
| Package Weight | 12.015 lb |
| Box Dimensions (LxWxH) | 16.45 x 12.15 x 4.9″ |
