JBL CSA2120 2-Channel Installed Sound Power Amplifier
TheCSA2120 2-Channel Installed Sound Power AmplifierfromJBLfeatures 120 watts of output per channel at 4 or 8 ohms and is designed for installed sound applications. Each of its two input channels has dual summing RCA inputs and a 3-pin detachable Euroblock
TheCSA2120 2-Channel Installed Sound Power AmplifierfromJBLfeatures 120 watts of output per channel at 4 or 8 ohms and is designed for installed sound applications. Each of its two input channels has dual summing RCA inputs and a 3-pin detachable Euroblock input. Both channels also feature a selectable limiter and high-pass filter at 70Hz. The CSA2120 has a 4-pin Euroblock output connector for powering dual loudspeakers. The auto-standby mode disables the amplifier pulse width modulation generator when there is no signal detected.

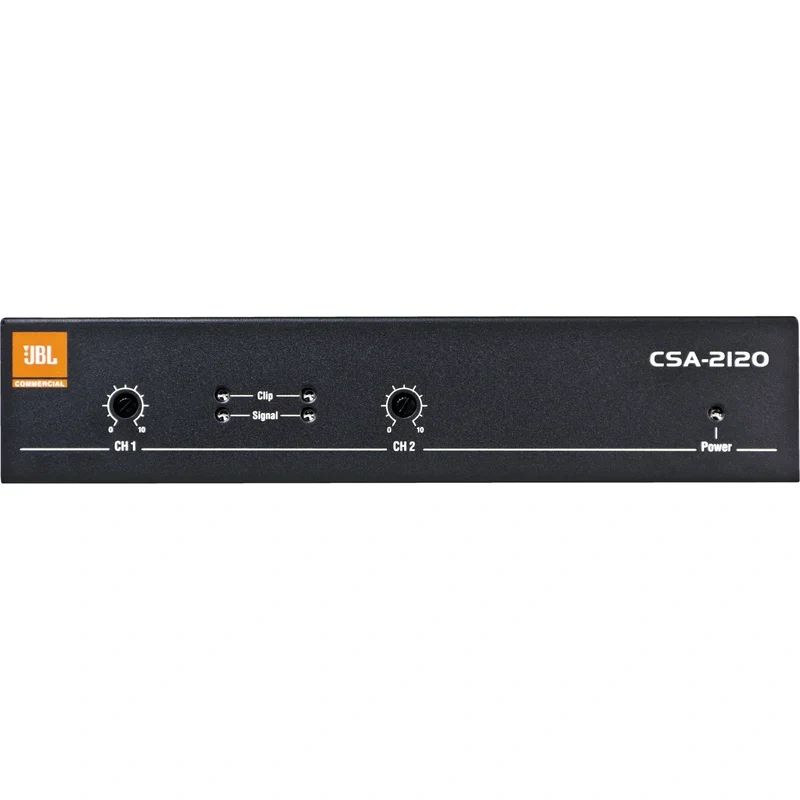

The CSA2120 has both over-heat and low-voltage protection and can be rackmounted with the included rackmount kit. It has front-panel channel volume controls as well as clip, signal, and power LED indicators. The unit is powered by a switch-mode universal power supply.
Features
- 120W Output Per Channel
- 4 or 8 Ohm Output
- Auto-Standby Mode
- 2 Input & Output Channels
- 2x RCA Inputs Per Channel
- 1x 3-Pin Euroblock Inputs Per Channel
- Selectable High-Pass Filter Per Channel
- Selectable Limiter Per Channel
- Includes Rackmount
Specifications
| Amplifier Power Rating | 4 Ohms / 8 Ohms: 120 W per Channel |
| Load Impedance / Voltage | 4 / 8 Ohms |
| Input Sensitivity | 1.4 Vrms (at 8 Ohms) |
| Input Impedance | 20 Kilohms (Balanced) 10 Kilohms (Unbalanced) |
| SNR | > 100 dBA (at 8 Ohms) |
| THD+N | < 0.5% |
| Crosstalk | 70 dBA (Below Rated Power, 1 kHz) 50 dBA (Below Rated Power, 20 kHz) |
Signal Processing
| Analog Audio I/O | 2x 2RCA Coaxial Line Input 2x Block 3-Pin Line Input 1x Block 4-Pin Speaker Output |
| Digital I/O | No |
| Network I/O | No |
| USB I/O | No |
| Mobile App Compatible | No |
| Wireless | No |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Physical
| Operating Temperature | 32 to 104F / 0 to 40C |
| Dimensions | 8.2 x 1.7 x 7.0″ / 20.9 x 4.4 x 17.8cm |
Packaging Info
| Package Weight | 4.285 lb |
| Box Dimensions (LxWxH) | 12.15 x 11.15 x 5.15″ |
