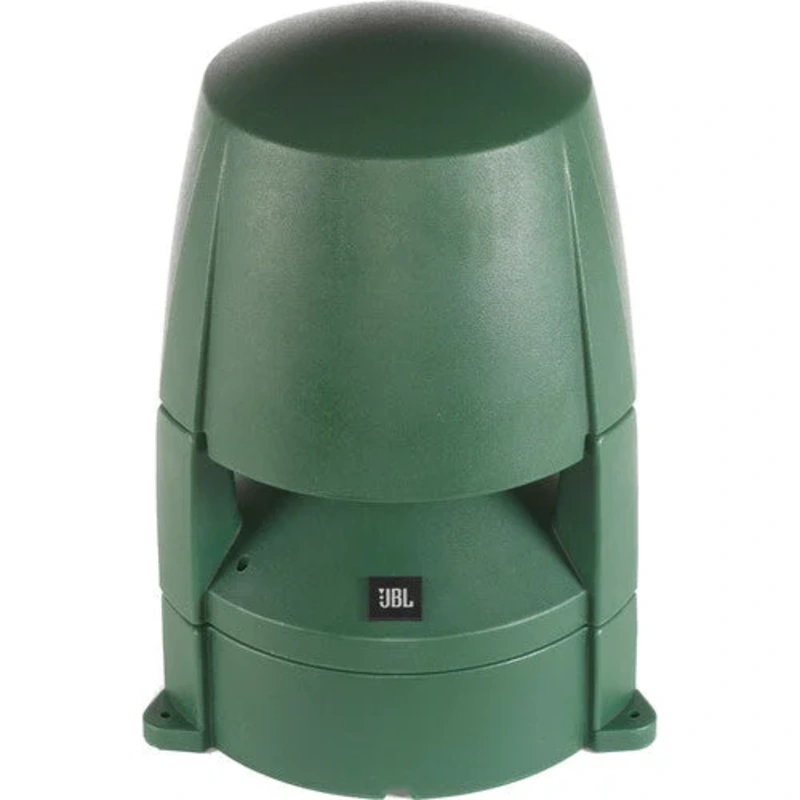

JBL CONTROL-89MS Above-Ground Landscape Subwoofer – 8″
Installers looking for a quality outdoor subwoofer should check out theJBL Professional Series Control 89MS, an 8" mushroom landscape subwoofer that's designed to augment the low-frequency performance of the JBL Control 80 Series landscape speaker line and
Installers looking for a quality outdoor subwoofer should check out theJBL Professional Series Control 89MS, an 8″ mushroom landscape subwoofer that’s designed to augment the low-frequency performance of the JBL Control 80 Series landscape speaker line and other outdoor systems to provide rich bass in your lawn, garden, entrance areas of hotels, restaurants, and other hospitality and retail complexes as well as theme parks, sports venues, resorts, entranceways, and anywhere a highly weather-resistant speaker is required.
The subwoofer is housed in a hunter-green enclosure made from rugged polyethylene, which can withstand the abuse of lawn care equipment as well as the elements. The 8″ woofer offers a 300W program power handling and generates an SPL of up to 115 dB with a frequency response of 53 to 110 Hz. The 8-ohm speaker also offers 70/100V operation with multiple transformer taps available.
Features
- For Outdoor Use
- 8″ LF Driver
- 300W Program Power Handling
- 53 to 110 Hz Frequency Range
- 115 dB Peak SPL
- IP56 Rated
- Tough Polyethylene Enclosure
- Includes Feet & Beveled Washers
Specifications
| Active/Passive | Passive |
| Number of Included Speakers | 1 |
| Speaker Configuration | Subwoofer |
| Power Handling | 150 W RMS 300 W Program 600 W Peak |
| Recommended Amplifier Power | 300 W RMS |
| Constant Voltage / Transformer Taps | 70 V: 80 / 40 / 20 / 10 W or 8 Ohms Bypass 100 V: 80 / 40 / 20 W or 8 Ohms Bypass |
| Impedance | 8 Ohms |
| Enclosure Type | Sealed |
Drivers
| LF Driver | 8″ / 203.2mm Polypropylene-Coated Woofer |
| LF Voice Coil | 2″ / 50.8mm |
Performance
| Frequency Range | 40 Hz to 150 Hz -10 dB |
| Frequency Response | 53 Hz to 110 Hz 3 dB |
| Maximum SPL | 115 dB (Peak) 109 dB (Continuous) |
| Sensitivity | 87 dB |
| Coverage Angle | 360 (Conical) |
| Directivity | 2 (Directivity/Q Factor) 3 (Directivity Index) |
| Recommended High-Pass Filter | 80 Hz, 24 dB/Octave |
Connectivity
| Inputs/Outputs | 2x Wire Lead |
Environmental
| Certifications | CANC22.2#166, CSA, RoHS, UL |
| Environmental Protection | Dust/Water-Resistant (IP56) |
Physical
| Color | Green |
| Construction Material | Polyethylene |
| Dimensions | 20.7 x 14 x 14″ / 52.6 x 35.6 x 35.6cm |
| Weight | 24lb / 10.9kg |
Packaging Info
| Package Weight | 30.135 lb |
| Box Dimensions (LxWxH) | 23.2 x 20.6 x 18.7″ |
