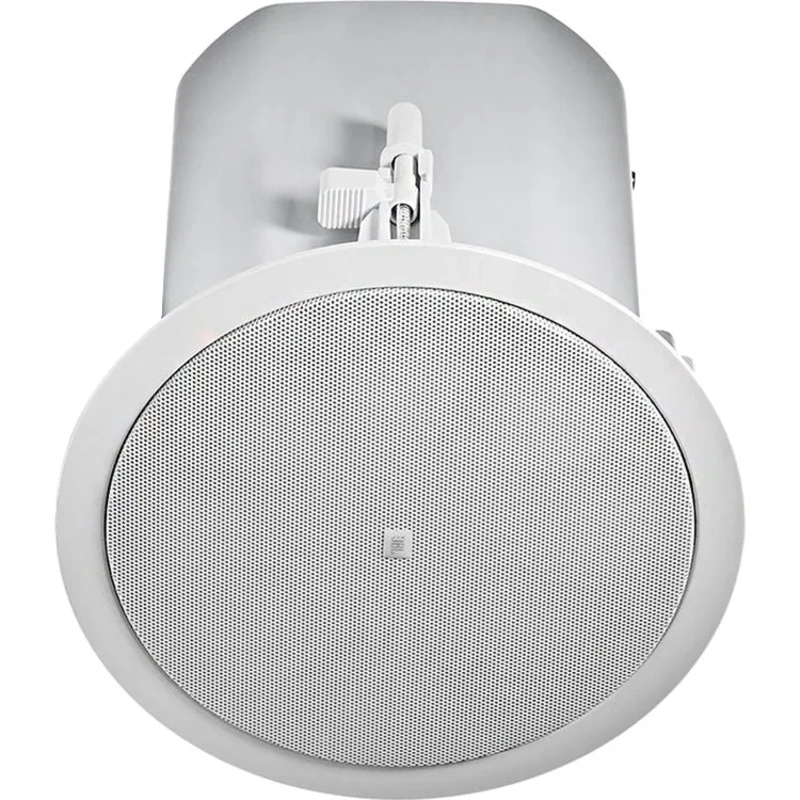

JBL CONTROL-45C/T Coaxial Ceiling Loudspeaker (Pair, White) – 5.25″
Sold as a pair, the whiteJBL Control 45C/Tis a passive 5.25" coaxial ceiling loudspeaker with a multi-tap transformer designed for voice amplification and foreground music reproduction in a variety of venues ranging from boardrooms to bistros. The 60W tran
Sold as a pair, the whiteJBL Control 45C/Tis a passive 5.25″ coaxial ceiling loudspeaker with a multi-tap transformer designed for voice amplification and foreground music reproduction in a variety of venues ranging from boardrooms to bistros. The 60W transformer allows the Control 45C/T to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Each Control 45C/T is equipped with a durable 5.25″ polypropylene woofer and a 0.75″ soft dome tweeter, yielding a frequency response of 80 Hz to 17 kHz, and a continuous program power capacity of 150W. The included removable locking input connectors, detachable grilles, cutout templates, paint shields, and C-ring / tile rail suspension systems contribute to easy installation.
Features
- Passive Design, RBI Technology
- 5.25″ Polypropylene Woofer
- 0.75″ Soft Dome Tweeter
- 150W Continuous Program Power Capacity
- For 70V/100V or 8-Ohm Power Amplifiers
- Multi-Tap Transformer
- 80 Hz to 17 kHz Frequency Response
- Removable Locking Input Connectors
- Includes Grilles, C-Rings & Tile Rails
- Includes Cutout Templates, Paint Shields
Specifications
| Active/Passive | Passive |
| Speaker Configuration | 2-Way |
| Power Handling | 150 W Program |
| Constant Voltage / Transformer Taps | 70 V: 60 / 30 / 15 / 7.5 W or 8 Ohms Bypass 100 V: 60 / 30 / 15 W or 8 Ohms Bypass |
| Impedance | 8 Ohms (Transformer Bypassed) |
| Transformer Wattage | 60 W |
| Shielded | No |
Drivers
| HF Driver | 1x 0.75″ / 1.91cm Waveguide-Coupled Soft-Dome Tweeter |
| LF Driver | 1x 5.25″ / 13.34cm Polypropylene-Coated Paper Woofer |
| LF Voice Coil | 1″ / 2.54cm |
| Magnet | HF: Neodymium |
Performance
| Frequency Range | 55 Hz to 20 kHz -10 dB |
| Frequency Response | 80 Hz to 17 kHz 3 dB |
| Maximum SPL | 107 dB SPL (Continuous) 113 dB SPL (Peak) |
| Sensitivity | 88 dB |
| Directivity | 5.6 (Directivity/Q Factor) 7.3 dB (Directivity Index) |
| Transformer Insertion Loss | 0.76 dB at 60 W 0.7 dB at 30 W 0.61 dB at 15 W 0.58 dB at 7.5 W |
Connectivity
| Inputs/Outputs | 1x Screw Terminal 2-Pin Speaker Input (Locking, Removable) 1x Screw Terminal 2-Pin Speaker Thru (Locking, Removable) |
| Maximum Wire Gauge | 12 AWG / 2.5 mm |
Environmental
| Environmental Protection | No |
Physical
| Color | White |
| Mounting | Ceiling Tile |
| Cutout Size | 8.7″ / 22cm |
| Mount Surface Thickness | Up to 2.8″ / 7cm |
| Dimensions | 9.9 x 9.4″ / 25.15 x 23.88cm |
| Weight | 8.6lb / 3.9kg (Each Speaker) |
