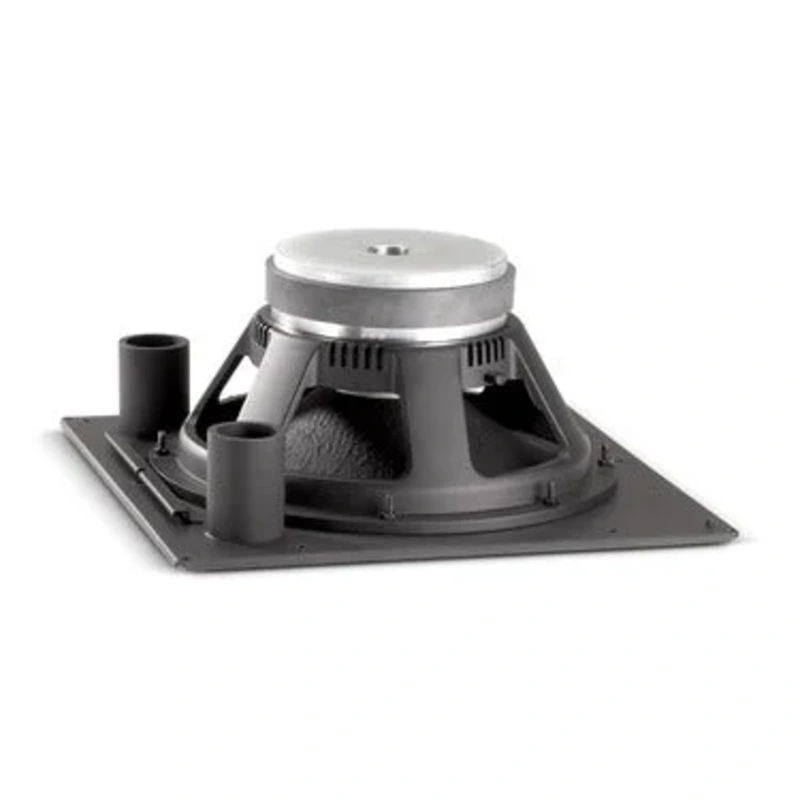

JBL CONTROL-312CS In-Ceiling Subwoofer Driver – 12″
TheJBL Control 312CSis a passive 12" in-ceiling subwoofer driver designed to deliver reliable low-frequency reinforcement for foreground music systems in a variety of venues such as boardrooms, retail stores, and restaurants. When driven by an 8-Ohm power
TheJBL Control 312CSis a passive 12″ in-ceiling subwoofer driver designed to deliver reliable low-frequency reinforcement for foreground music systems in a variety of venues such as boardrooms, retail stores, and restaurants. When driven by an 8-Ohm power amplifier (available separately), this subwoofer is capable of a 400W long-term power capacity. The Control 312CS features a durable 12″ woofer with a Kevlar-reinforced cone and a 3″ voice coil, and boasts a frequency response of 34 Hz to 3.5 kHz.
A removable locking connector offers screw-down terminals for input and loop-thru output connections. Installation is simplified via the built-in EZRail, which holds the pre-attached baffle in place until it is affixed to a backcan (available separately). The Control 312CS is intended for use with systems utilizing active external crossovers and separate subwoofer amplification.
Features
- Passive Design
- 12″ Woofer with Kevlar-Reinforced Cone
- 3″ Voice Coil
- 400W Long-Term Power Capacity
- For 8-Ohm Power Amplifiers
- 34 Hz to 3.5 kHz Frequency Response
- Removable Locking I/O Connector
- Built-In EZRail
Specifications
| Active or Passive | Passive |
| LF Driver | 12″ / 30 cm Woofer with Kevlar-Reinforced Cone and 3″ / 7.5 cm Voice Coil on Aluminum Former |
| Frequency Range | 30 Hz to 4.5 kHz (-10 dB) |
| Frequency Response | 34 Hz to 3.5 kHz (3 dB) |
| Power Capacity | For 2 Hours: 400 W (1000 W Peak) For 100 Hours: 250 W (600 W Peak) |
| Sensitivity | 93 dB (Measured Half-Space, 2.83 V at 1 m) |
| Maximum SPL | 121 dB Continuous Average (124 dB Peak) |
| Nominal Impedance | 8 Ohms |
| Input | Removable Locking Connector with Screw-Down Terminals (Input Terminals and Loop-Thru Output Terminals) |
| Maximum Wire Gauge | 12 AWG |
| Shielded | No |
| Baffle | Material: Metal Design: Ported, with EZRail for Backbox Installation Dimensions: 14.4 x 14.4″ / 36.6 x 36.6 cm |
| Dimensions | 14.4 x 14.4 x 6.3″ / 36.6 x 36.6 x 16.0 cm from Back of Baffle |
| Weight | 17 lb / 7.7 kg |
| Safety Rating | UL 1480, UL 2043, NFPA 90, and NFPA 70 when Installed with UL-Listed Backcan S7232/UL, UL 1876, IEC 60849 / EN 60849 |
Packaging Info
| Package Weight | 21 lb |
| Box Dimensions (LxWxH) | 17.5 x 17.5 x 12.5″ |
