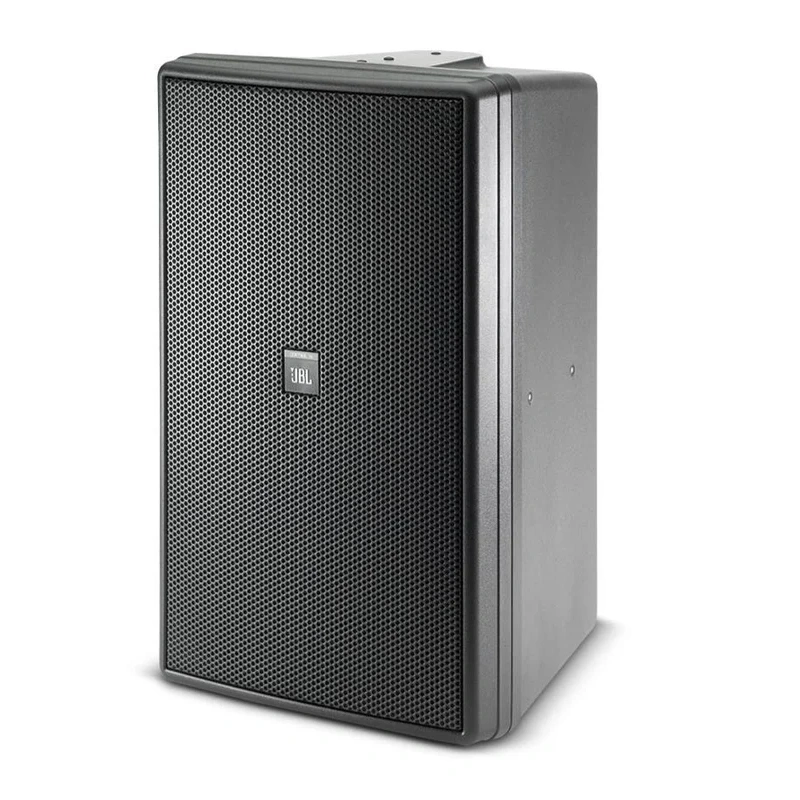

JBL CONTROL-30 Three Way Coaxial Surface Speaker (Black) – 10″
TheJBL Control 30 3-Way Indoor/Outdoor Loudspeaker (Single)is a high-output, 3-way indoor/outdoor surface mount installation speaker, with a 500W continuous program power handling capacity, extended MF and HF coverage for either horizontal or vertical plac
TheJBL Control 30 3-Way Indoor/Outdoor Loudspeaker (Single)is a high-output, 3-way indoor/outdoor surface mount installation speaker, with a 500W continuous program power handling capacity, extended MF and HF coverage for either horizontal or vertical placement, a 70V/100V transformer, and a durable, weather-resistant enclosure. JBL’s proprietary Invisiball mounting system allows for quick, simplified, precise placement and positioning of the speaker.
Features
- 3-Way Design
- 500W Power Handling
- 70/100V Transformer
- Weather-Resistant Enclosure
- Invisiball Mounting System
Specifications
| Active/Passive | Passive |
| Number of Included Speakers | 1 |
| Speaker Configuration | 3-Way |
| Power Handling | For 100 Hours: 500 W Program 250 W RMS |
| Constant Voltage / Transformer Taps | 70 V / 100 V |
| Impedance | 4 Ohms |
| Transformer Wattage | 150 W |
| Shielded | No |
Drivers
| HF Driver | 1″ / 25mm Titanium-Coated Compression Driver |
| MF Driver | 5″ / 125mm Aluminum Cone |
| MF Voice Coil | 1″ / 25mm |
| LF Driver | 10″ / 250mm Fiberglass Woofer |
| LF Voice Coil | 2″ / 5cm |
Performance
| Frequency Response | 38 Hz to 17 kHz -10 dB 40 Hz to 16 kHz 3 dB |
| Maximum SPL | 123 dB (Peak) 117 dB (Continuous) |
| Sensitivity | 93 dB |
| Crossover | Low-Pass: 18 dB/Octave High-Pass: 18 dB/Octave |
| Protections | Overcurrent |
Connectivity
| Inputs/Outputs | 1x Screw Terminal |
Environmental
| Environmental Protection | Water-Resistant (IPX5) |
Physical
| Color | Black |
| Construction Material | High-Impact Polystyrene |
| Dimensions | 23.3 x 14.6 x 13.5″ / 593 x 372 x 345mm |
| Weight | 42lb / 18.9kg |
Packaging Info
| Package Weight | 51.8 lb |
| Box Dimensions (LxWxH) | 28 x 18 x 18″ |
