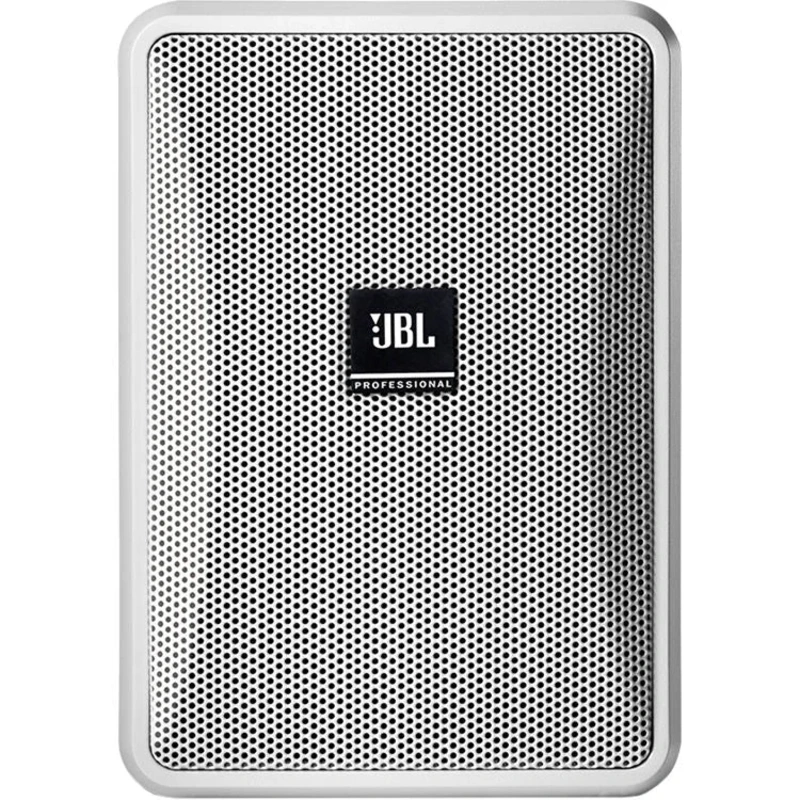

JBL CONTROL-23-1L-WH 2-Way Surface Mount Speaker (White) – 3″
The white pair of 2-way, 3"JBL Control 23-1L Loudspeakersare designed for background or foreground applications. Featuring weather-protected circuitry, the Control 23-1L can be used indoors or outdoors and are well suited for retail stores, restaurants, he
The white pair of 2-way, 3″JBL Control 23-1L Loudspeakersare designed for background or foreground applications. Featuring weather-protected circuitry, the Control 23-1L can be used indoors or outdoors and are well suited for retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where high-quality, high-output indoor/outdoor foreground/background music (and/or paging) speakers are required. The speakers feature JBL’s proprietary InvisiBall mounting hardware, which allows for installation through a hidden access point behind its logo badge.
The Control 23-1L require 100W (200W program) at 8 Ohms to power the 3″ woven fiberglass woofer and 1/2″ PEI diaphragm tweeter, which combine for a frequency response of 95 Hz to 19 kHz and a max SPL of 109 dB peak. Connections to the speaker are screw-down terminal strips with a zinc-plated copper and nickel-plated metal screws and washers. The JBL Control 23-1L includes the InvisiBall wall-mounting system and a hex key.
Features
- 3″ Woven-Fiberglass LF Drivers
- 1/2″ PEI Diaphragm Tweeters
- 50W RMS at 8 Ohms
- Durable, Weatherized Enclosures
- InvisiBall Mounting Hardware
- Zinc-Plated Grilles
- Good for Off-Axis Listening
- 95 Hz to 19 kHz Frequency Response
Specifications
| Active/Passive | Passive |
| Speaker Configuration | 2-Way |
| Power Handling | For 2 Hours: 100 W Peak 50 W RMS |
| Impedance | 8 Ohms (Nominal) |
Drivers
| HF Driver | 1x 0.5″ / 12.7mm PEI Dome Tweeter |
| LF Driver | 1x 3″ / 76.2mm Fiberglass Woofer |
Performance
| Frequency Range | 70 Hz to 20 kHz -10 dB |
| Frequency Response | 95 Hz to 19 kHz 3 dB |
| Maximum SPL | 109 dB SPL (Peak) |
| Sensitivity | 86 dB |
| Coverage Angle | 100 H x 100 V |
| Directivity | 5.8 (Directivity/Q Factor) 7.2 dB (Directivity Index) |
| Recommended High-Pass Filter | 70 Hz, 24 dB/Octave |
| Maximum Input Voltage | 17.2 V RMS 34.4 V Peak |
Connectivity
| Inputs/Outputs | 1x Screw Terminal Speaker Input |
| Maximum Wire Gauge | 12 AWG / 2.5 mm |
Environmental
| Certifications | RoHS |
| Environmental Protection | Dust/Water-Resistant (IP44) |
Physical
| Color | White |
| Mounting | Ball Mount |
| Dimensions | 7.87 x 5.55 x 4.37″ / 200 x 141 x 111mm |
| Weight | 3.4lb / 1.5kg (Each Speaker) |
