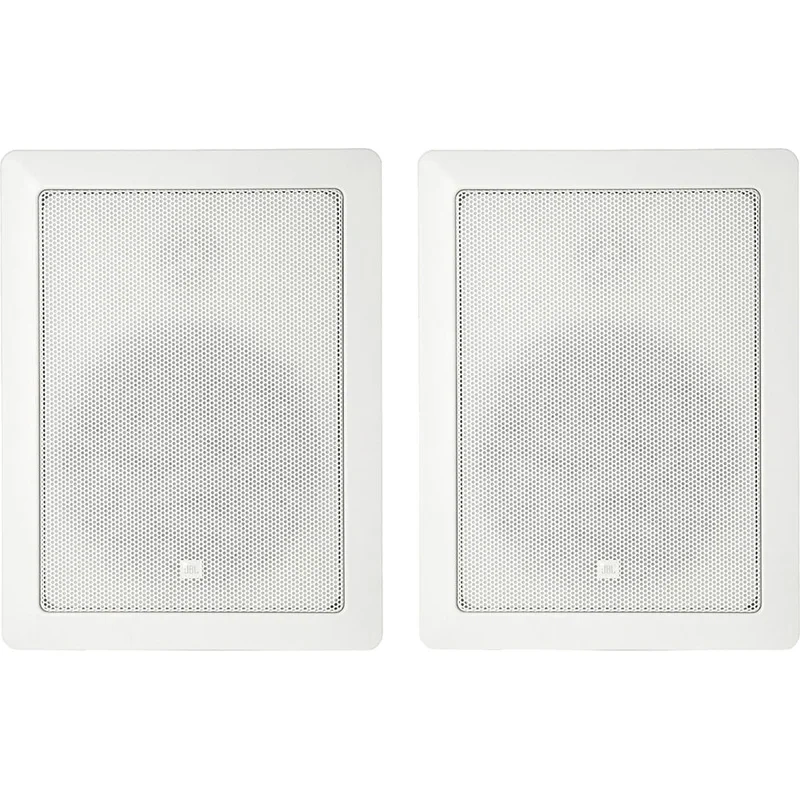

JBL CONTROL-128WT In-Wall 70V/100V Installation Speakers (Pair, White) – 8″
Sold as a pair, the whiteJBL Control 128WTis a passive 8" in-wall installation speaker with a multi-tap transformer designed for voice amplification and foreground music reproduction in a variety of venues ranging from boardrooms to bistros. When driven by
Sold as a pair, the whiteJBL Control 128WTis a passive 8″ in-wall installation speaker with a multi-tap transformer designed for voice amplification and foreground music reproduction in a variety of venues ranging from boardrooms to bistros. When driven by 70V/100V power amplifiers (available separately), these 2-way speakers provide a program power capacity of 120W (240W peak). Each Control 128WT is equipped with a durable 8″ aluminum-cone woofer and an aimable 1″ titanium-dome tweeter, yielding an extended frequency range of 30 Hz to 20 kHz.
The built-in EOS waveguide minimizes distortion and harshness while the high-slope crossover network ensures natural midrange tonality and proper frequency distribution to the speaker components. A screw-down Euroblock input, cutout template, and paint shield contribute to easy installation.
Features
- Passive Design
- 8″ Woofer, 1″ Titanium-Dome Tweeter
- Aimable Tweeter with EOS Waveguide
- 120W Program (240W Peak) Power Capacity
- For 70V/100V Power Amplifiers
- Multi-Tap Transformer
- 30 Hz to 20 kHz Frequency Range
- High-Slope Crossover Network
- Screw-Down Euroblock Input
- Includes Cutout Template & Paint Shield
Specifications
| Active or Passive | Passive |
| LF Driver | 8″ / 20 cm Polymer-Coated Aluminum Cone with Pure Butyl Rubber Surround |
| HF Driver | 1″ / 2.5 cm Pure Titanium Dome with Cloth Suspension on Low-Diffraction Swivel Mount with -10 Aimability |
| Frequency Range | 30 Hz to 20 kHz (-10 dB) |
| Power Capacity | Peak: 240 W Continuous Program: 120 W Continuous Pink Noise: 60 W |
| Sensitivity | 90 dB SPL (1 W, 1 m) |
| Impedance | Not applicable |
| Transformer Taps | Watts at 70 V: 6, 12, 25, 50 Watts at 100 V: 12, 25, 50 |
| Crossover | Low-Pass Filter to Woofer: 2nd Order (12 dB/Octave) High-Pass Filter to Tweeter: 2nd Order (12 dB/Octave) |
| Input | Screw-Down Euroblock Connector (14 AWG Maximum Wire Size) |
| Shielded | No |
| Air Gap | Optimum Air Cavity Behind Speaker: 1.4 to 2.8 ft / 40 to 80 L |
| Cutout Dimensions (H x W) | 11.9 x 8.9″ / 30.0 x 22.5 cm |
| Maximum Wall Thickness | 1.3″ / 3.2 cm |
| Dimensions | 13.1 x 10.1 x 4.3″ / 33.4 x 25.7 x 11.0 cm 4″ / 10.2 cm Front of Wall to Back of Speaker |
| Weight | 7.2 lb / 3.3 kg |
Packaging Info
| Package Weight | 17 lb |
| Box Dimensions (LxWxH) | 15.5 x 12.5 x 10″ |
