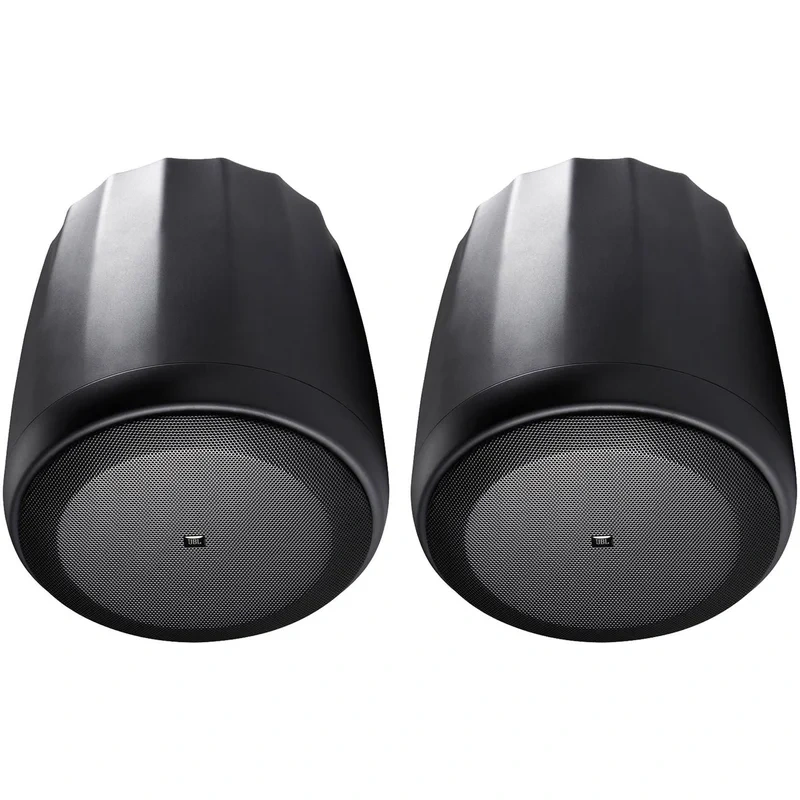

JBL C60PS/T Passive Pendant Subwoofer (Pair, Black) – 8″
The blackJBL Control 60PS/Tis a pair of passive pendant subwoofers designed to deliver low-frequency reinforcement for foreground and background music reproduction in restaurants, retail stores, coffee shops, and fitness facilities. Capable of handling 300
The blackJBL Control 60PS/Tis a pair of passive pendant subwoofers designed to deliver low-frequency reinforcement for foreground and background music reproduction in restaurants, retail stores, coffee shops, and fitness facilities. Capable of handling 300W of continuous long-term program power, the Control 60PS/T’s 8″ long-excursion driver can produce a frequency range of 42 to 350 Hz (-10 dB) and a 113 dB peak maximum SPL.
The integrated 110W multi-tap transformer enables 70V, 100V, or 8-ohm operation and the passive crossover provides high-pass-filtered outputs for two or four satellite speakers. Removable locking Euroblock connectors simplify the process of wiring the input, loop thru, and satellite outputs.
The high-impact polystyrene enclosure boasts an IP44 splash-proof rating in addition to its Mil-STD-810 compliance for resistance to humidity, salt spray, temperature & UV damage. The Control 60PS/T is supplied with suspension cable systems for safe hanging installation.
Features
- 8″ Long-Excursion Driver
- 300W Long-Term Program Power Handling
- 42 to 350 Hz Frequency Range (-10 dB)
- Passive Crossover for 4 Satellites
- Integrated 110W Multi-Tap Transformer
- Supports 70V, 100V, or 8-Ohm Operation
- IP44 Splash-Proof Rating
- Removable Locking Euroblock Connectors
- Includes Hanging Hardware
Specifications
| Active/Passive | Passive |
| Number of Included Speakers | 2 |
| Speaker Configuration | Subwoofer |
| Power Handling | For 100 Hours: 300 W Program |
| Constant Voltage / Transformer Taps | 70 V: 110 / 55 / 30 / 15 W or 8 Ohms Bypass 100 V: 110 / 55 / 30 W or 8 Ohms Bypass |
| Impedance | 8 Ohms |
| Transformer Wattage | 110 W |
| Enclosure Type | Sealed |
| Shielded | No |
Drivers
| LF Driver | 1x 8″ / 20.32cm Polypropylene-Coated Paper Woofer |
| LF Voice Coil | 2″ / 5.08cm |
Performance
| Frequency Range | 42 Hz to 350 Hz -10 dB |
| Frequency Response | 55 Hz to 125 Hz 3 dB |
| Maximum SPL | 107 dB (Continuous) 113 dB (Peak) |
| Sensitivity | 88 dB |
| Crossover | 125 Hz (Passive) |
| Transformer Insertion Loss | 0.98 dB at 15 W 0.99 dB at 30 W 0.94 dB at 55 W 1.1 dB at 110 W |
Connectivity
| Inputs/Outputs | 1x Block 2-Pin Speaker Input (Locking, Removable) 1x Block 2-Pin Speaker Thru (Locking, Removable) 4x Block 2-Pin Speaker Output (Locking, Removable) |
| Maximum Wire Gauge | 12 AWG / 2.5 mm |
Environmental
| Certifications | UL |
| Environmental Protection | Dust/Water-Resistant (IP44) |
Physical
| Color | Black |
| Mounting | 2x Suspension |
| Construction Material | Metal Grille, Polystyrene |
| Dimensions | 14.5 x 13.6 x 13.1″ / 36.83 x 34.54 x 33.27cm |
| Weight | 16.7lb / 7.6kg (Each Speaker) |
Packaging Info
| Package Weight | 38 lb |
| Box Dimensions (LxWxH) | 26.5 x 16 x 14.5″ |
