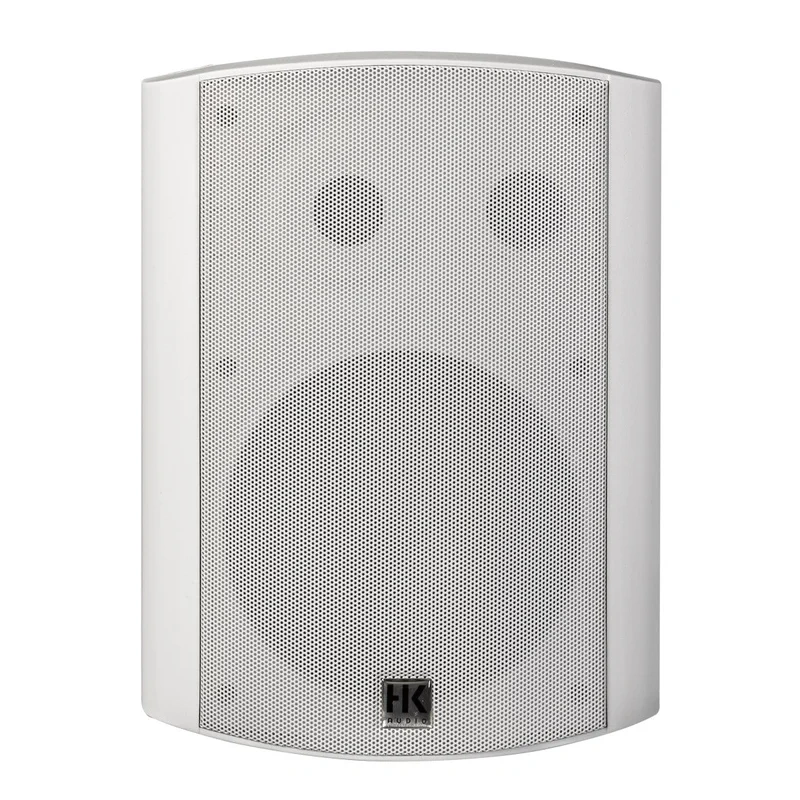

HK Audio IL80-TW Compact Speaker Install 100V 5 Taps 8 ohm (White) – 8″
Compact speaker system for short listening distances. Trapezoidally slanted plastic housing, equipped with 8 woofer and 0.75 tweeter with passive crossover with 60 W program power handling. Switchable 100 V transformer with five power taps (2 W/ 5 W/ 10 W/
Category: Integration
Compact speaker system for short listening distances. Trapezoidally slanted plastic housing, equipped with 8 woofer and 0.75 tweeter with passive crossover with 60 W program power handling. Switchable 100 V transformer with five power taps (2 W/ 5 W/ 10 W/ 20 W/ 40 W). Available in black (TB) or white (TW). U-bracket for wall and ceiling mounting included as standard.
Specifications
| Product Class | Install Sound |
| Power-handling nominal (RMS) | 60 W |
| Power-handling, program | 120 W |
| Power-handling, peak | 180 W |
| Nominal impedance | 8 ohms |
| Maximum SPL, 1W/1m (@ 3% THD) | 107 dB |
| Maximum SPL, @ 10% THD | 109 dB |
| Sensitivity 1W/1m | 89 dB |
| Frequency response +/- 3 dB | 60 Hz bis 20 kHz |
| Frequency response -10 dB | 50 Hz bis 20 kHz |
| Low/Mid Speaker | 8″ |
| HF Driver | 1″ tweeter |
| Crossover frequency | 2,5 kHz |
| Connections | binding posts 2, 5, 10, 20, 40 W, Off |
| Enclosure | polymer |
| Grille | metal grille |
| Finish | White or Black |
| Dimensions (WxHxD) | 27 cm x 37 cm x 22 cm |
| Weight | 5,4 kg / 11.88 lbs. |
