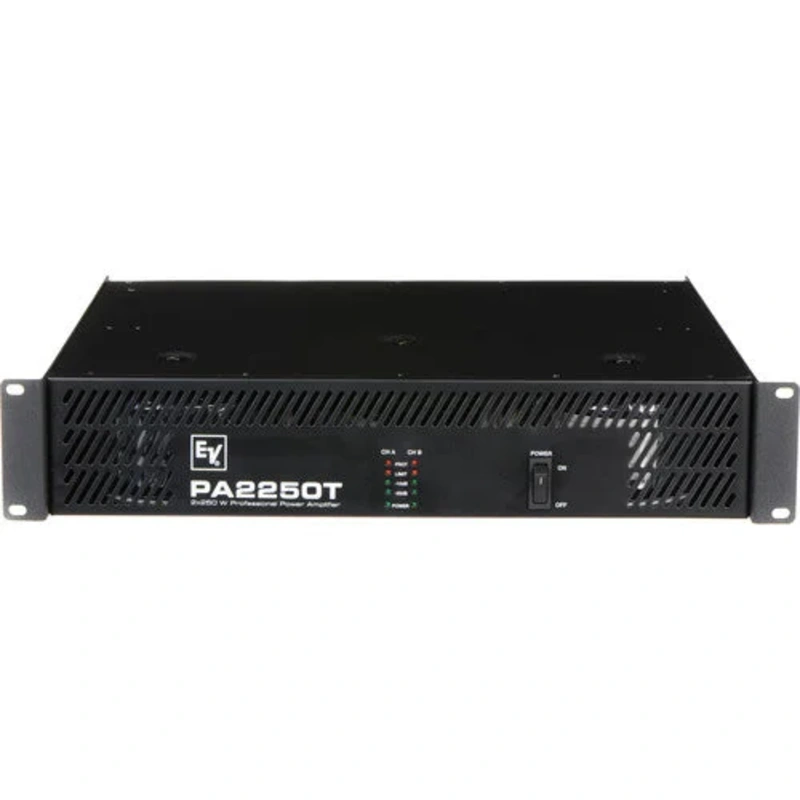

Electro-Voice PA2250T Rackmount 2-Channel 250W Power Amplifier (50V/70V/100V) (USED)
** FEW SCRATCHES OTHERWISE IN GOOD CONDITION **TheElectro-Voice PA2250Tis a rackmount 250W 2-channel power amplifier with a high-performance output transformer ideal for 50V/70V/100V systems or 4-/8-Ohm setups in schools, houses of worship, retail spaces,
** FEW SCRATCHES OTHERWISE IN GOOD CONDITION **
TheElectro-Voice PA2250Tis a rackmount 250W 2-channel power amplifier with a high-performance output transformer ideal for 50V/70V/100V systems or 4-/8-Ohm setups in schools, houses of worship, retail spaces, offices, and more. This amplifier has a simple, easy-to-use interface with the power switch and indicator LEDs on the front panel, while the stepped level controls and switches for the selectable 50/70/300 Hz high-pass filter and dual/parallel/bridged mode are on the rear. Euroblock input and output connectors are utilized for quick and easy setup.
Comprehensive protection circuitry protects your amplifier from damage caused by overheating, overloads, and short-circuit issues. The output has a delayed connection at power-up to prevent damage to your speakers. Variable-speed fans and a flow-through-chassis design direct airflow from front to rear, and keep the amplifier cool and running smoothly. Integrated rack ears allow direct mounting of the 2 RU enclosure in a standard 19″ equipment rack.
Features
- Rugged rack-mountable 2 RU housing with integrated rack ears
- Choose to operate in dual mono, parallel, or bridged mono mode
- 250W rated output power with low noise and distortion
- Dual Euroblock Phoenix-type input connectors
- 12-pin Euroblock output connector for 50V/70V/100V or 4/8 Ohms
- Rear-panel volume control
- Selectable high-pass filter at 50/70/300 Hz
- Front-to-rear airflow for reliable operation
- Protection circuitry for overheating, audio limiting, delayed output connection at power-up, and peak current limiting
- Front-panel LEDs for power, signal, limit, and protect
- Voltage selector for international use
Specifications
| Amplifier Power Rating | 4 Ohms / 50 V / 70 V / 100 V: 250 W (Full Range, 0.2% THD) 8 Ohms: 125 W |
| Load Impedance / Voltage | 50 / 70 / 100 V 4 / 8 Ohms |
Performance
| Frequency Response | 65 Hz to 40 kHz -1 dB |
| Damping Factor | > 250 at 4 Ohms |
| Input Sensitivity | 775 mV / 0 dBu |
| Input Impedance | >20 Kilohms (Balanced) |
| Max Gain | 36.2 dB (at 50 V) 39.1 dB (at 70 V) 42.2 dB (at 100 V) 34.3 dB (Low-Z) |
| Max Voltage Swing | At 50 V:59 V RMS At 70 V:82 V RMS At 100 V:117 V RMS At 4 / 8 Ohms:35.4 V RMS |
| SNR | 103 dB |
| THD | < 0.1% |
| Intermodulation Distortion | < 0.1% (DIM 30) < 0.1% (SMPTE) |
| Crosstalk | < -75 dB |
| Slew Rate | 50 V:29 V/s 70 V:41 V/s 100 V:61 V/s 4 / 8 Ohms:18 V/s |
Signal Processing
| Filters | 1x High-Pass |
Connectivity
| Analog Audio I/O | 1x Block 12-Pin Output 2x Block 3-Pin Input |
Power
| AC Input Power | 120 to 230 VAC, 50 / 60 Hz |
| Power Consumption | 330 W (1/8 Power) |
Physical
| Display & Indicators | 2x Green LED (Power) 4x Green LED (Signal) 2x Red LED (Limit) 2x Red LED (Protect) |
| Cooling | Fan (Variable Speed) |
| Dimensions | 19.0 x 3.5 x 15.9″ / 48.3 x 8.8 x 40.5cm |
| Weight | 51.8lb / 23.5kg |
Packaging Info
| Package Weight | 57.6 lb |
| Box Dimensions (LxWxH) | 22.8 x 22.3 x 7.4″ |
