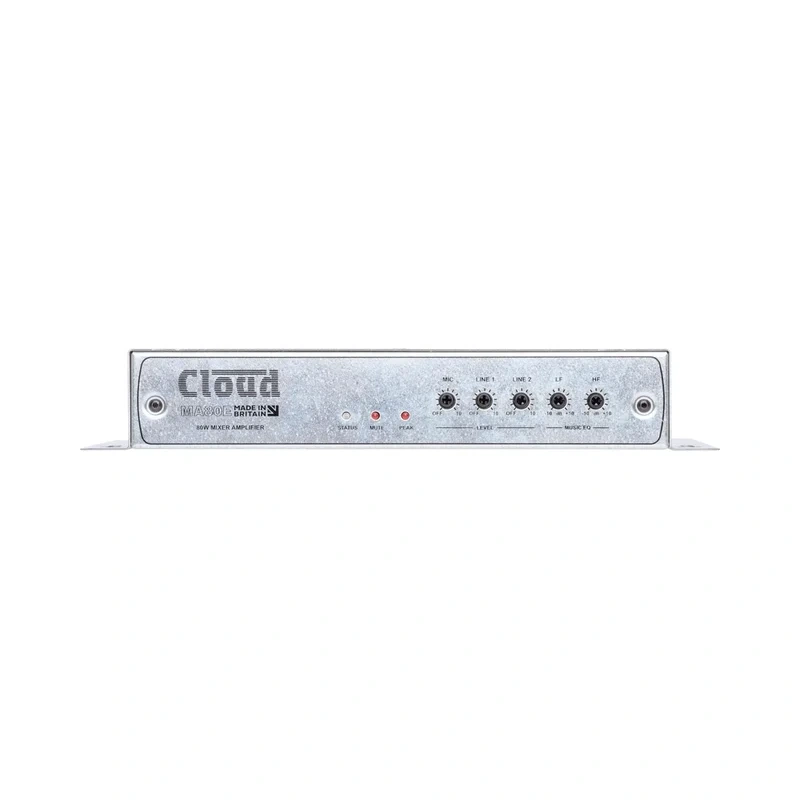

The MA80E is a Mini Amplifier providing 80W Mono Output at 4 (low impedance). The notable feature difference between the “E” Version and the rest of the MA80 Series is the Ethernet Web Browser and RS232 control interface. It is fitted with a paging Microphone input with access contacts, two line inputs and Facility Port input allowing connection of the LM-2 Input Module Wall Plates and the BT-1F Bluetooth Audio Wireless Input Module.

Designed for integration into commercial audio installations and AV systems where de-centralisation of the system component is an advantage. It is intended as an “install and forget” component and is small enough to be fitted into a wall or ceiling void, or directly adjacent to a projector, flat screen or loudspeaker.

The MA80E is powered internally via 100-240V SMPS.

Specifications

• 1 x 80W 4 Output (<1% THD @ Full Output)
• Ethernet /RS-232 Level/Source/EQ Control
• APD – Auto Awake & Hibernation
• Line 1 over Line 2 Priority
• Microphone Input with EQ (MA80 only) and Input Gain
• Facility Port Input (For LM-2 Connection)
• Music EQ Plus
• Music Mute
• Auxiliary Output
• Dynamic Clip, Thermal & Short Protection
• Integrated Universal Power Supply
